| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Zion communication OR OEM |
| 인증: | ISO, CE, RoHS, UL |
| 모델 번호: | 네트워크 랙 캐비닛 |
| 최소 주문 수량: | 1,000 PC |
| 포장 세부 사항: | 1 PC / 플라스틱 백, PC / 통 |
| 배달 시간: | 정상적으로 10 워킹데이스 |
| 지불 조건: | T/T,L/C |
| 공급 능력: | 30,000 PCS / 달 |
| 모델: | 네트워크 랙 캐비닛 | 브나드: | 시온커뮤니케이션 |
|---|---|---|---|
| 색상: | 검정, 회색 | 적재 능력: | 60kg |
| 강조하다: | Double Section Design Wall Cabinet,Tempered Glass Door Network Rack Cabinet,Steel Frame Structure Double Section Cabinet |
||
A professional 19-inch double-section wall cabinet designed for network, telecom, and security equipment, with convenient rear access, organized cable routing, and reliable enclosure protection.

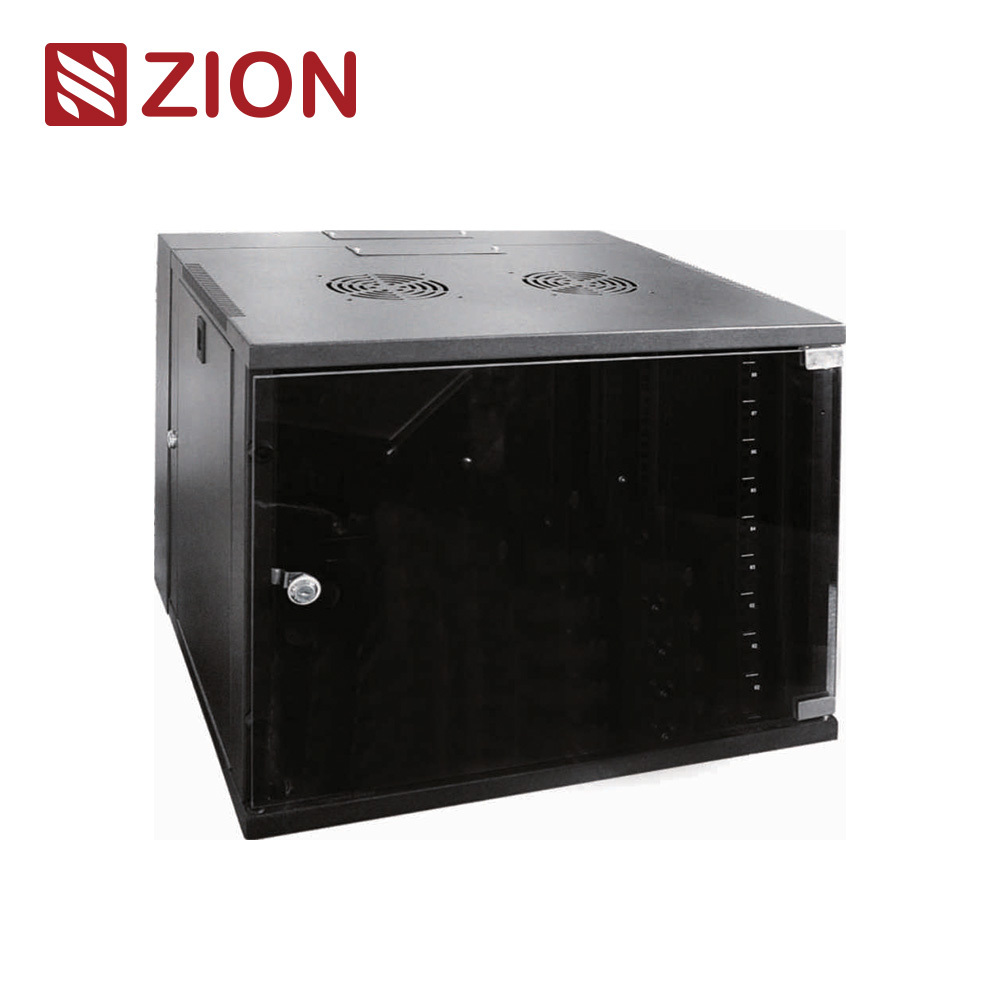

The ZWS-C cabinet combines a steel frame structure, double-section access, tempered glass front door, and top/bottom cable entry to support clean installation and easier maintenance in compact wall-mounted deployments.
The ZION ZWS-C Double Section Wall Cabinet is designed for network, telecom, and security equipment that requires convenient rear access and dependable enclosure protection. Its double-section structure improves installation efficiency and maintenance accessibility, while the 19-inch compatibility supports standard rack-mounted devices.
This cabinet is suitable for organized indoor equipment deployment where cable routing, equipment protection, and maintenance convenience all matter.
ANSI/EIA RS-310-D · IEC 60297-2 · DIN 41497 Part 1 · DIN 41494 Part 7 · GB/T 3047.2-92
Assembled cabinet with precise craftsmanship for dependable enclosure strength.
Compatible with standard 19-inch equipment and offers better rear-side accessibility.
Supports easier installation, inspection, and servicing of mounted equipment.
Simplifies routine access and maintenance work.
Cover plate design helps keep cable routing clean and organized.
Supports active ventilation for improved thermal management.
| Item | Specification |
|---|---|
| Frame Material | SPCC high-quality cold rolled steel |
| Mounting Profile Thickness | 1.2 mm |
| Other Parts Thickness | 1.0 mm |
| Surface Treatment | Degreasing → Pickling → Phosphating → Powder Coating |
| Static Loading Capacity | Up to 30 kg |
| Protection Level | IP20 |
The product sheet shows an exploded structure diagram together with multi-view layout drawings, illustrating the cabinet body, top and bottom plates, rear door, front door, lock, and mounting position details.
This double-section construction is intended to improve cable access, simplify rear maintenance, and support cleaner equipment management in wall-mounted environments.
For switches, patch panels, and cable management in office or building networks.
Suitable for wall-mounted communication equipment in compact indoor installations.
Supports surveillance, access control, and related devices needing protected enclosure space.
A practical option where floor-standing racks are unnecessary or space is limited.
